液体喷砂机系列

类型: 液体喷砂机
品牌: 斯特尔
型号: 种类齐全,可咨询客服
产品详情


液体喷砂机系列

产品特点 Product features

1.极大的改善了粉尘对环境的污染和对工人健康的危害;

2.工作方法灵活,工艺参数可变,能适应不同材质和不同精密零件的光饰加工要求;

3.在工作过程中磨料循环使用,消耗量小;

4.主要零部件使用寿命长;

5.塑料钢整壳制作,机身防水防电耐用。

1. Greatly improves the dust pollution to the environment and to workers health hazard;

2. The flexible methods work, process parameters variable, can adapt different materials and different precision components of light act the role ofing processing requirements;

3. In the process of operation abrasive recycling consumption, little;

4. The main components of long service life;

5. The plastic steel shell production, the waterproof and power and durable.

适用范围 Applicable scope

电子五金类,ABS塑料,亚克力,树脂等工件或工艺品的喷砂预处理、哑光处理、光饰加工、去除油污等。

Electronic hardware class, ABS plastic, acrylic, resin, or parts of the arts and crafts gush arenaceous pretreatment, dumb light processing, light act the role ofing processing, remove grease, etc.

主要技术参数 Main technical parameters

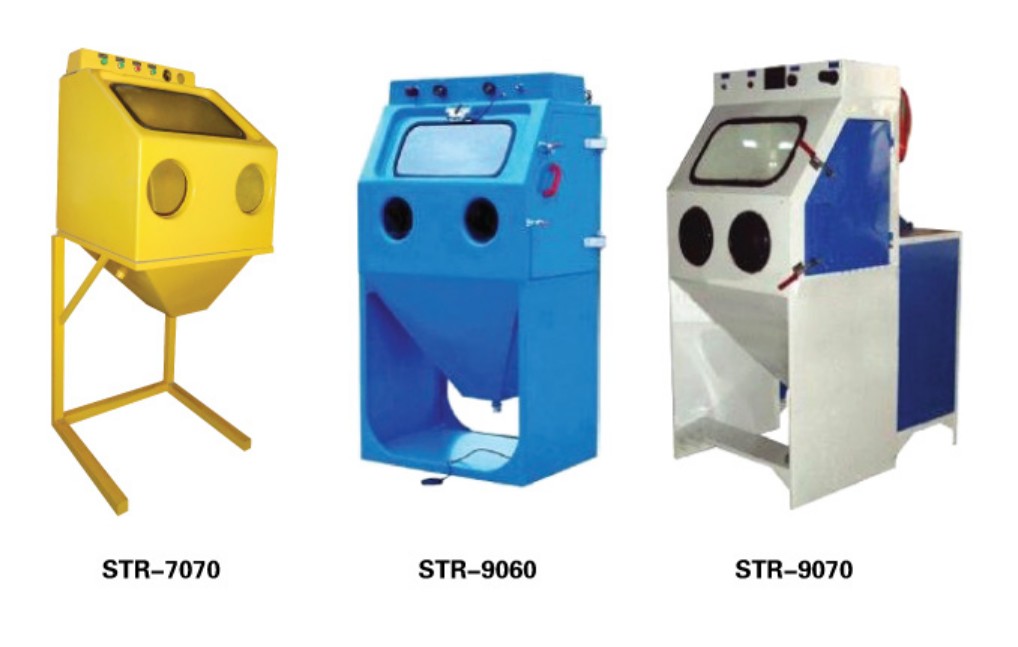

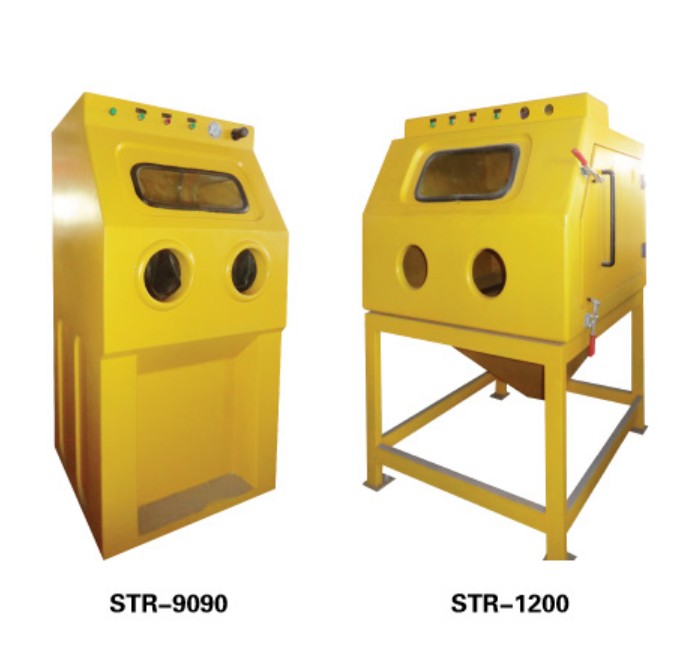

机器型号 Model

STR-7070

STR-9060

STR-9070

STR-9090

STR-1200

整机尺寸Complete machine size(mm)

700×700×1750

900×650×1680

900×700×1850

900×900×1780

1230×1200×1850

工作空间 Work space(mm)

690×680×670

900×630×810

900×700×650

870×880×800

1220×1200×850

正门尺寸Main gate size(mm)

530×330

550×650

600×670

630×700

975×660

Spray gun

一把

一把

一把

一把

一把

Floodlight

一盏60W防爆灯

一盏60W防爆灯

一盏60W防爆灯

一盏60W防爆灯

一盏60W防爆灯

Sand pump

一台,功率1.5KW

一台,功率1.5KW

一台,功率1.5KW

一台,功率1.5KW

一台,功率1.5KW

Power

单相220V交流电

单相220V交流电

单相220V交流电

单相220V交流电

单相220V交流电

压缩空气源Compressed air source

2-8bar(kg/m2)

2-8bar(kg/m2)

2-8bar(kg/m2)

2-8bar(kg/m2)

2-8bar(kg/m2)
